Jaguar XF Hybrid Battery

2021-Present

Executive sedan hybrid battery service for Jaguar XF MHEV models. Expert 48V mild hybrid system reconditioning with warranty coverage for this elegant British executive saloon.

MHEV System

48V Technology

Executive

Luxury Sedan

Warranty

6-24 Months

Premium

British Luxury

Get Free Quote Call Us

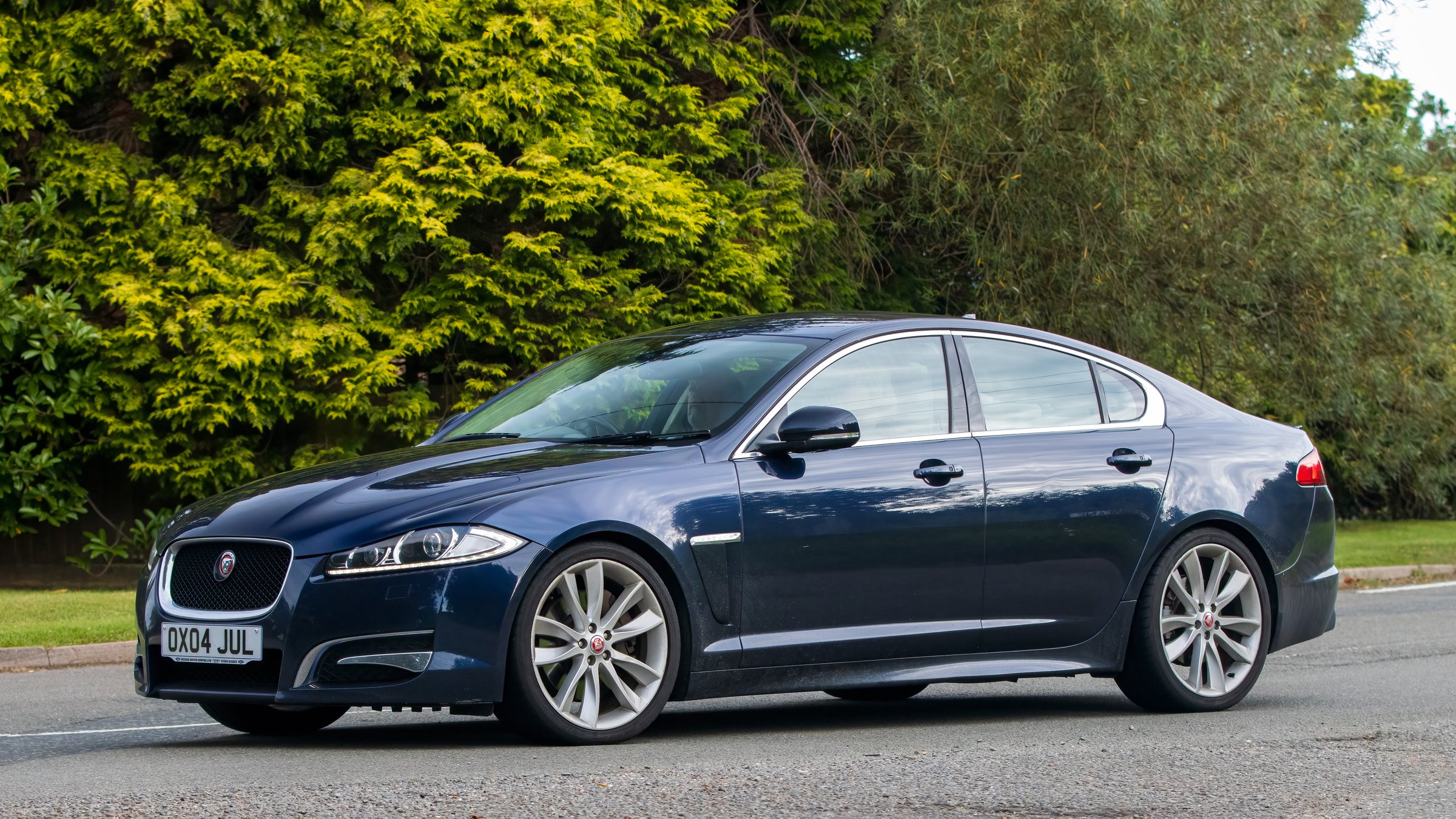

Whittlebury,Northants,UK -Aug 27th 2023: 2013 blue Jaguar XF car travelling on an English country road

XF

Executive

Technical Specifications

Jaguar XF Battery Systems

Comprehensive battery specifications for Jaguar XF MHEV hybrid systems

Battery Type

48V Lithium-ion

Voltage

48V DC system

Capacity

~0.5 kWh (500 Wh)

Regeneration

Energy recovery during braking

Engine Assist

Smooth start/stop operation

System

Belt-integrated starter generator (BISG)

Common MHEV Battery Issues

48V-to-12V DC-DC Converter Failure (P1A20): The "Death Loop" - car bricks itself when converter fails because there's no alternator. 12V battery dies, contactors open, car becomes non-runner. Do NOT assume 48V battery is dead! Connect BSU to 12V terminals and run TOPIx "Battery Replacement" routine to wake contactors.
P0AA1-00 Code: Battery contactor stuck closed - requires contactor replacement
Stop/Start System Malfunction: 48V battery degradation causes start/stop failure. Belt Integrated Starter Generator (BISG) cannot maintain charge cycle.
12V Battery Constant Drain: DC-DC converter not charging 12V battery properly, leading to repeated flat battery symptoms

Professional JLR Diagnostic Equipment

Official Jaguar Land Rover diagnostic tools:

TOPIx Cloud

Official JLR diagnostic

Pathfinder

Technical repair info

SDD (IDS)

Symptom Diagnostics

Certified Techs

JLR specialists
